Pratt & Whitney Canada PW127 Turboprop Engine Operating Infographic

Some infographics for starting and cranking of PWC PW127 are presented:

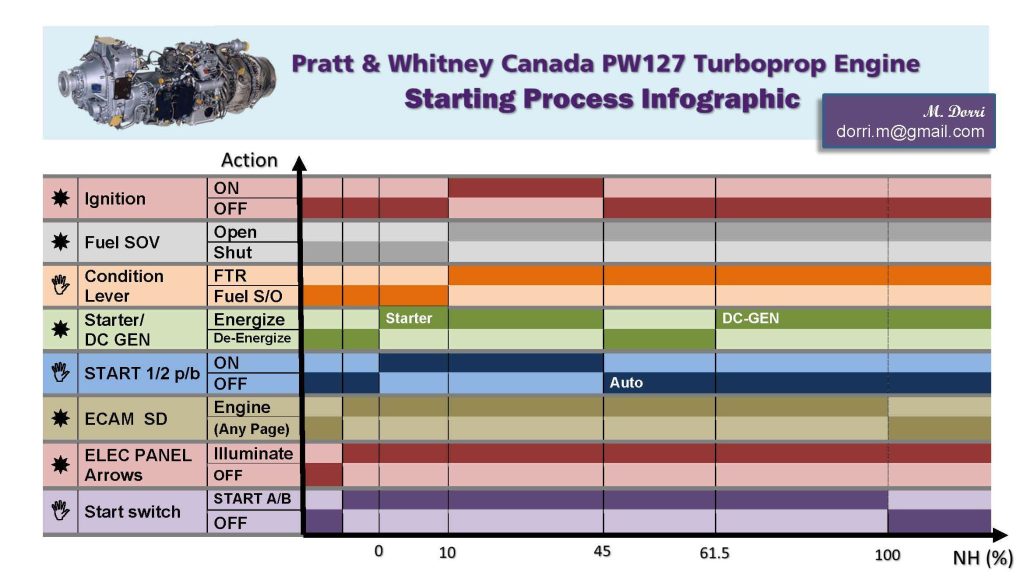

PW127 Starting Infographic
PW127 Starting Infographic

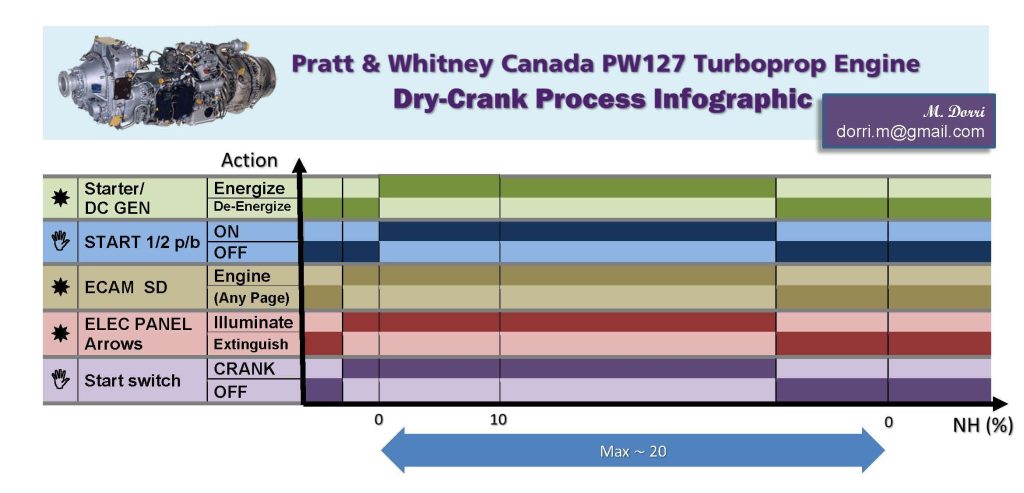

PWC PW127 Dry Cranking Infographic
PWC PW127 Dry Cranking Infographic

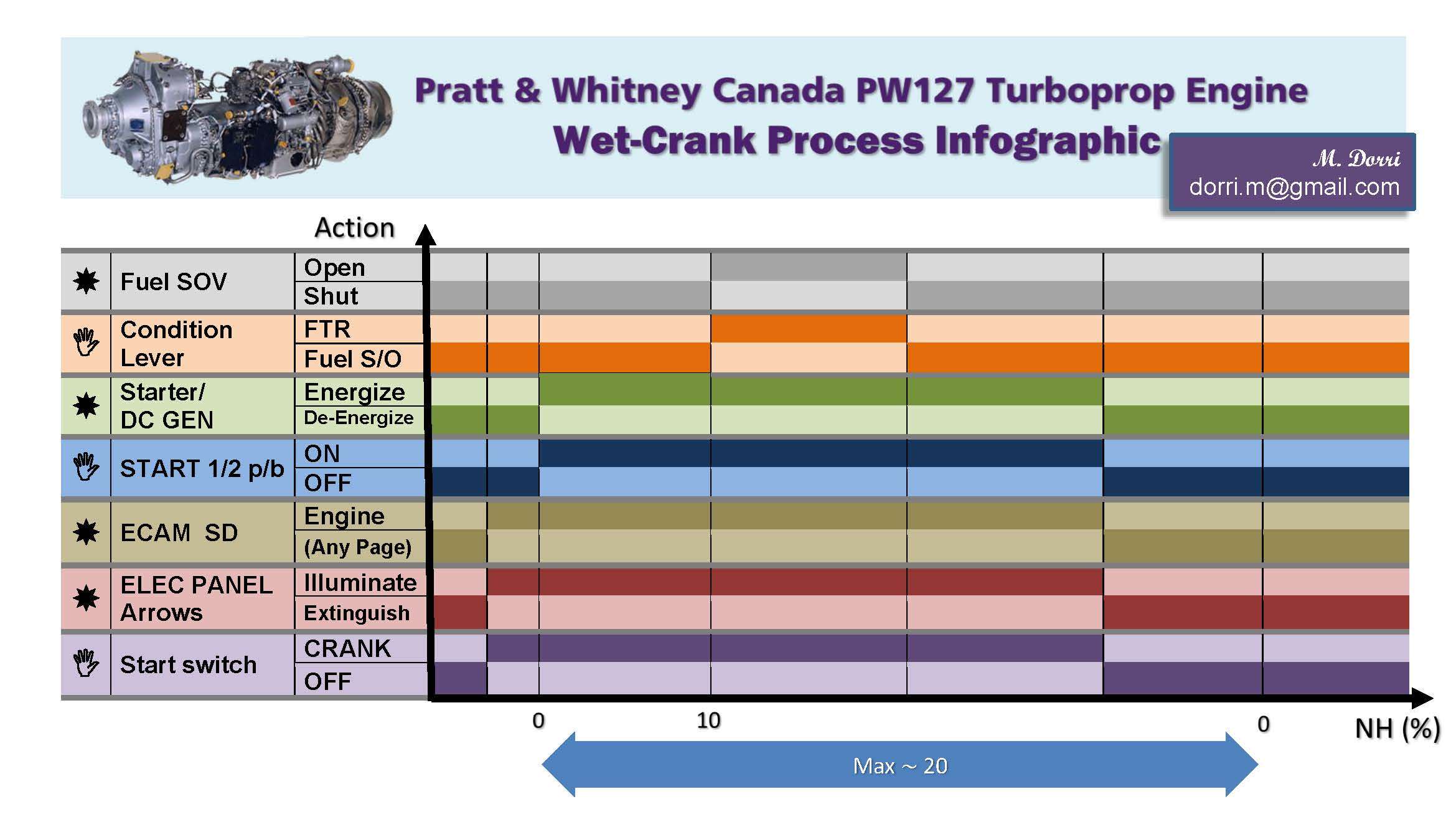

PWC PW127 Wet Cranking Infographic
PWC PW127 Wet Cranking Infographic
